Ensuring your trailer lights are wired correctly is crucial for safe towing and protecting your vehicle. A single miswired connection can cause accidents, damage, or malfunctions on the road. The 7 pin plug plays a vital role in powering essential trailer functions, including brake lights, turn signals, tail lights, and auxiliary power. It is widely used in RVs, cargo trailers, boat trailers, and other towing vehicles where reliable electrical connections are critical. In this article, we will explain the correct order to wire a 7 pin plug, making the process simple to understand even for beginners. Additionally, we’ll highlight the advantages of using high-quality products from YOUYE Electronics, including durable 7 pin plugs and wiring harnesses designed for safety, reliability, and long-lasting performance.
Correct wiring of a 7 pin plug is essential for safe towing. Incorrect connections can cause brake lights, tail lights, or turn signals to fail, putting both the driver and others at risk on the road. It can also lead to electrical shorts or damage to the vehicle’s wiring system. Legal regulations, such as ADR in Australia or SAE standards, set specific wiring requirements to ensure trailers signal correctly and safely. Using a poorly made or incompatible wiring harness may result in fines, insurance issues, or failed safety inspections. YOUYE Electronics’ 7 pin wiring harnesses help prevent these issues, providing durable, high-quality connections that comply with international safety standards.
| Risk of Incorrect Wiring | Potential Consequences |
|---|---|
| Faulty brake lights | Increased rear-end collision risk |
| Non-working turn signals | Miscommunication with other drivers |
| Electrical shorts or damage | Vehicle or trailer repair costs |
| Regulatory non-compliance | Fines or failed inspections |
By using YOUYE products, you can ensure that every wire is correctly connected. This minimizes risks and keeps your towing setup legal and safe.

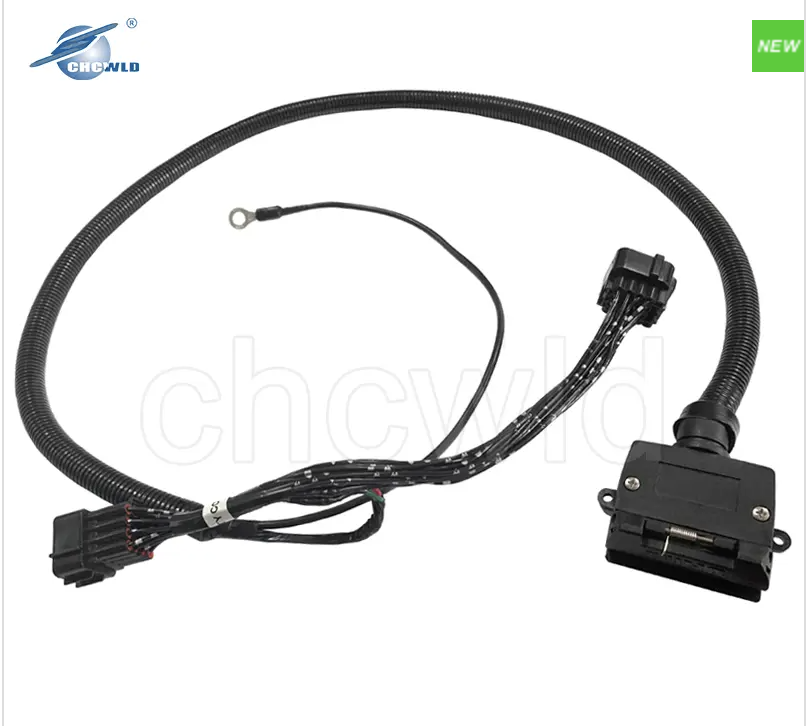

The YOUYE 7 Pin Wiring Harness stands out for its practical design and high durability. It features a plug-and-play system that fits most vehicles without requiring splicing or modifications. The harness uses premium materials that resist corrosion, water, and vibrations, making it suitable for harsh weather and rugged towing conditions. Moreover, it supports flexible upgrades or conversions from 4 to 13 pins, accommodating different trailer types like RVs, boats, or cargo trailers. This versatility reduces the need to purchase multiple harnesses for different setups.
| Feature | Benefit |
|---|---|
| Plug-and-Play Installation | Quick and easy setup without cutting wires |
| Corrosion-Resistant Materials | Long-lasting performance even outdoors |
| Multi-Pin Compatibility | Works with RVs, boats, and cargo trailers |
| Shockproof & Waterproof | Maintains connection under tough conditions |
By choosing YOUYE Electronics, users get a harness that combines safety, durability, and versatility. It ensures reliable trailer connections, preventing electrical failures and making towing stress-free. They are ideal for anyone who prioritizes both vehicle protection and hassle-free installation.
The 7 pin trailer plug is the core of safe towing. Each pin controls a vital trailer function, from turn signals to auxiliary power. Using the correct order ensures your trailer lights, brakes, and accessories operate reliably. Here’s a typical wiring layout for RVs and SAE standards:
| Pin | Function | Typical Wire Color (RV/SAE) |
|---|---|---|
| 1 | Left Turn / Stop | Yellow |
| 2 | Right Turn / Stop | Green |
| 3 | Tail Lights | Brown |
| 4 | Electric Brakes | Blue |
| 5 | Backup / Reverse / Auxiliary | Black |
| 6 | 12V Battery / Auxiliary | Red |
| 7 | Ground | White |
Wire colors may vary by standard or manufacturer. YOUYE Electronics harnesses follow standard configurations, eliminating guesswork and extra modifications. They are designed to plug directly into most vehicles and trailers, ensuring reliable operation across different setups. Using the correct pin order also prevents accidental short circuits and malfunctioning trailer lights, which could compromise road safety.
Many trailer owners make wiring errors that lead to dangerous situations. Reversing left and right turn signals, skipping the ground wire, or neglecting the auxiliary lines are common issues. Cheap harnesses can also cause flickering lights, shorts, or permanent damage.
YOUYE 7 pin wiring harnesses solve these problems. They feature corrosion-resistant, waterproof materials and reinforced connectors that withstand vibration and heavy use. Their universal design allows easy upgrades from 4 to 13 pins, adapting to any trailer type.
Some practical tips to avoid mistakes include using a circuit tester before finalizing connections, securing all wires with clips, and double-checking each pin’s function. Proper installation ensures lights and brakes respond correctly, protecting both the driver and other road users.
By paying attention to pin function and avoiding common errors, you guarantee consistent, safe towing performance every time. The combination of proper knowledge and YOUYE’s high-quality products makes wiring straightforward and dependable.
The correct order to wire a 7 pin trailer plug is essential to ensure your trailer’s lights, brakes, and auxiliary functions work properly. Each pin must connect to its designated wire to prevent malfunctions and maintain safety on the road.
Here is the standard wiring order for a typical 7 pin plug:
| Pin | Function | Typical Wire Color (RV/SAE) |
|---|---|---|
| 1 | Left Turn / Stop | Yellow |
| 2 | Right Turn / Stop | Green |
| 3 | Tail Lights | Brown |
| 4 | Electric Brakes | Blue |
| 5 | Backup / Reverse / Auxiliary | Black |
| 6 | 12V Battery / Auxiliary | Red |
| 7 | Ground | White |
To wire your 7 pin plug correctly, always match each wire to its corresponding pin according to this table. For example, connect the yellow wire to Pin 1 for left turn signals, green to Pin 2 for right turn signals, and white to Pin 7 for ground.
Using a quality plug and harness, like those from YOUYE Electronics, ensures this standard order is maintained. Their products are plug-and-play, corrosion-resistant, and compatible with most vehicles and trailers. This guarantees proper connections, prevents electrical faults, and makes installation quick and reliable.
Following this exact pin order eliminates common mistakes such as swapped turn signals, faulty brake lights, or non-functional auxiliary circuits. It is the safest method to wire a 7 pin plug and keep your trailer compliant with regulations.
Dealing with 7 pin wiring problems can be frustrating. Lights may flicker, turn signals might reverse, or electric brakes fail completely. These issues often occur due to loose connections, corrosion, or wiring in the wrong order. Low-quality harnesses can worsen the problem, leading to shorts or intermittent operation. Using a high-quality harness like YOUYE Electronics simplifies troubleshooting and ensures consistent, reliable performance. Their products follow standard wiring layouts, which makes identifying and fixing problems faster and easier for both DIYers and professionals.
Understanding the common wiring problems helps prevent further damage. Incorrect ground connections often lead to flickering or non-functional tail lights. Swapped left and right wires cause turn signals to behave incorrectly. Poor brake wiring or damaged connectors can make electric brakes fail entirely. Low-grade wires may corrode or break under vibration, causing intermittent electrical issues. Using a high-quality harness reduces these risks and makes your trailer safer on the road.
| Issue | Possible Cause | Quick Fix Using YOUYE Harness |
|---|---|---|
| Tail lights not working | Loose or corroded connection | Check pin connections, clean terminals |
| Flickering lights | Poor ground or low-quality wire | Replace with YOUYE harness, verify ground pin |
| Turn signals reversed | Left/right wires swapped | Refer to standard wiring diagram |
| Electric brakes not activating | Incorrect brake wire or bad connector | Test brake pin, secure connections |
Start by visually inspecting each connection for corrosion, fraying, or loose terminals. Use a circuit tester to confirm power reaches each pin correctly. Secure or replace damaged connectors and ensure proper grounding. YOUYE harnesses feature waterproof, corrosion-resistant materials, which reduces common faults and makes it easier to follow the standard 7 pin wiring order. Always refer to the supplied wiring diagram to match each pin to its function.
Regular maintenance also prevents issues. Checking harness integrity and cleaning connectors before each towing trip ensures the trailer’s lights, turn signals, and brakes work as intended. With YOUYE Electronics, you have a robust, long-lasting wiring solution that minimizes troubleshooting time while maximizing towing safety and compliance with legal standards.
Correct wiring of a 7 pin plug is essential for trailer safety and vehicle protection. Following the standard wiring order prevents tail light, brake light, or turn signal failures and ensures compliance with local trailer regulations. Using high-quality products reduces the risk of short circuits and poor connections while improving overall reliability.
YOUYE Electronics offers trailer wire harnesses and 7 pin plugs with high durability, waterproof and corrosion-resistant design, and vibration resistance. They are compatible with multiple vehicle types and support 4 to 13 pin upgrades or conversions. These plug-and-play products simplify installation, save time, and provide stable electrical connections. Using YOUYE products allows quick troubleshooting of common wiring issues, ensuring safe and reliable trailer performance on the road.
A: The typical 7 pin wiring order is: 1-Yellow left turn/stop, 2-Green right turn/stop, 3-Brown tail lights, 4-Blue electric brakes, 5-Black backup/auxiliary, 6-Red 12V battery/auxiliary, 7-White ground. Colors may vary by standard.
A: Correct wiring ensures trailer lights and brakes function safely, prevents accidents, and complies with ADR, SAE, and local trailer regulations.
A: Mistakes include reversing left/right turn signals, misgrounding, ignoring auxiliary lines, or using low-quality harnesses that cause shorts.
A: YOUYE Electronics provides durable, waterproof, and plug-and-play 7 pin harnesses compatible with various vehicles, supporting 4-13 pin upgrades, ensuring safe, reliable trailer connections.
