Trailer wiring might seem complicated, but understanding the color codes is essential for both safety and legal compliance. Incorrectly connected lights can cause accidents, roadside fines, or damage to your vehicle and trailer. YOUYE Electronics, a trusted provider of high-quality trailer wiring harnesses and accessories, helps make proper installation straightforward and reliable. In this article, we’ll guide you through standard trailer wiring color codes, explain different wiring types, highlight common issues, and provide practical installation tips. You’ll also discover recommended products from YOUYE Electronics that ensure your trailer lights function correctly and safely, making towing easier and worry-free.
Understanding trailer wiring color codes is crucial for safety and proper vehicle function. Every light on your trailer—tail lights, brake lights, and turn signals—relies on correct wiring. If a wire is connected incorrectly, it can cause lights to fail or flash at the wrong time, leading to accidents. Even small wiring mistakes can result in electrical shorts, blown fuses, or malfunctioning brake controllers. Proper wiring ensures your trailer communicates clearly with your vehicle and other drivers on the road.
Using standardized color codes helps you avoid miswiring and short circuits. When each wire has a designated color, it’s easier to identify and connect it correctly. This reduces the risk of wiring errors that could damage your trailer’s electronics or cause safety hazards. For example, connecting the brake wire to a turn signal circuit could confuse other drivers and increase accident risk. Color coding also simplifies troubleshooting when something goes wrong.
| Wire Color | Function | Common Issue if Miswired |
|---|---|---|
| Green | Right turn signal / brake | Brake or signal lights fail |
| Yellow | Left turn signal / brake | Wrong light flashes or fails |
| Brown | Tail lights | Tail lights not working |
| White | Ground connection | Flickering or dead circuits |
| Blue | Electric brakes | Brakes fail to engage |
| Black | 12V power supply | No power to accessories |
| Purple | Reverse lights | Backup lights don’t work |

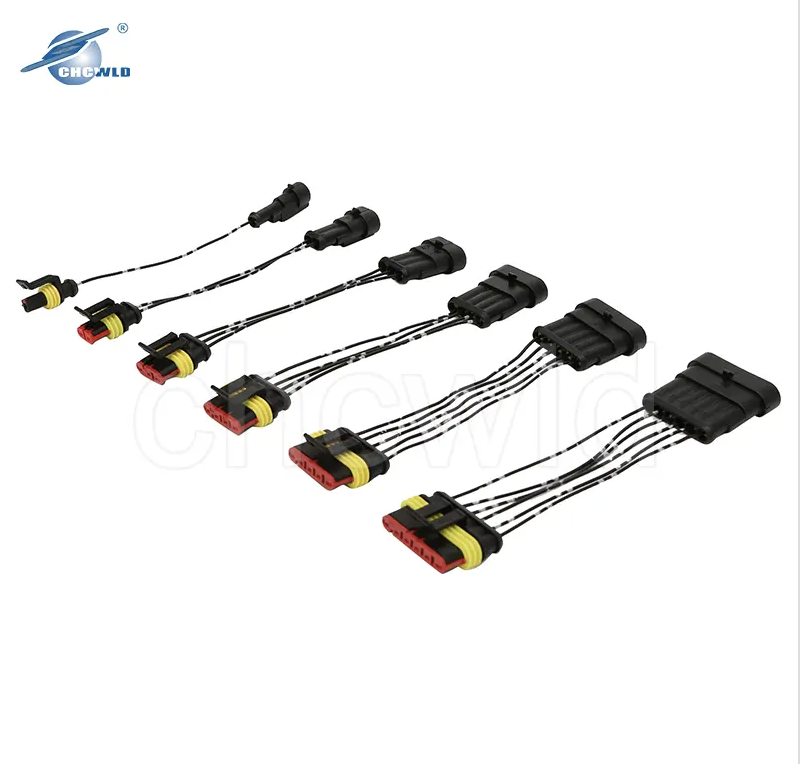

At YOUYE Electronics, we manufacture trailer wiring harnesses that strictly follow industry-standard color codes. Our products use durable, waterproof cables, resistant to corrosion, dirt, and extreme weather. This ensures your trailer wiring lasts years without failure. Each harness kit comes with clearly labeled wires and connectors, making installation easier for both beginners and professionals.
Our harnesses provide consistent electrical performance, preventing flickering lights or intermittent failures that can occur with lower-quality cables. Using proper color-coded wiring also makes future maintenance and troubleshooting simple. YOUYE harnesses are tested for durability under harsh conditions, so you don’t have to worry about damage from rain, snow, or road debris. With these harnesses, you can safely tow your trailer knowing all lights and brakes function correctly.
| Feature | YOUYE Advantage |
|---|---|
| Standardized color codes | Simplifies installation and maintenance |
| Heavy-duty wiring | Resists wear, weather, and corrosion |
| Waterproof connectors | Ensures reliable performance in wet conditions |
| Complete kits | Includes everything needed for installation |
Trailer wiring is the electrical system that connects your tow vehicle to your trailer, allowing lights, brakes, and accessories to function correctly. It acts as the communication link between your vehicle and trailer, ensuring signals are transmitted accurately. Without proper wiring, tail lights, brake lights, and turn signals may fail, creating serious safety hazards on the road. Different trailer types require different wiring setups, making it essential to understand wiring standards before installation. Trailer wiring is not just about lights—it also powers electric brakes, reverse lights, and auxiliary accessories, depending on the trailer.
Proper trailer wiring ensures that your lights and brakes operate safely and reliably. For smaller utility trailers, a basic 4-pin wiring harness may be sufficient. Boat trailers often require waterproof wiring to prevent corrosion. Horse trailers need dependable brake and signal connections to ensure safety for animals and drivers. Larger trailers like RVs or travel trailers require full 7-pin wiring to handle lights, electric brakes, and powered accessories simultaneously. Incorrect or outdated wiring can lead to short circuits, blown fuses, or even accidents, making standard wiring practices vital for safe towing.
| Trailer Type | Typical Wiring Needs | Key Considerations |
|---|---|---|
| Utility trailer | 4-pin flat (lights only) | Simple, lightweight, cost-effective |
| Boat trailer | 4-pin or 5-pin, waterproof | Corrosion-resistant for water exposure |
| Horse trailer | 5-pin or 6-pin | Reliable brakes and turn signals |
| RV / travel trailer | 7-pin round or blade | Supports brakes, lights, powered accessories |

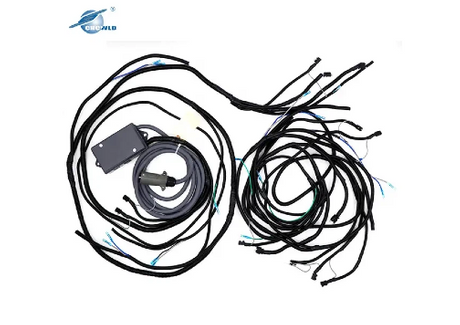

At YOUYE Electronics, we provide a comprehensive range of trailer wiring harnesses suitable for all trailer types and configurations. Each harness is designed with durable, waterproof wires that resist corrosion, road debris, and extreme temperatures. We offer standardized color-coded wiring for easy identification, which minimizes installation errors. Additionally, our products include detailed installation guides, making them ideal for both professionals and DIY enthusiasts. Choosing YOUYE wiring harnesses ensures long-term reliability, safety, and optimal performance, no matter the towing conditions.
Our trailer wiring solutions feature heavy-duty cables, standardized colors for easy identification, and compatibility with 4-pin, 5-pin, 6-pin, and 7-pin trailers. They support auxiliary connections for powered accessories and electric brakes, ensuring your trailer operates safely and efficiently. The wiring is designed to endure environmental challenges such as moisture, ice, snow, and dust, providing long-lasting performance. By using YOUYE Electronics harnesses, you reduce maintenance issues, avoid electrical failures, and improve overall towing safety and reliability.
Understanding standard trailer wiring color codes is essential for safety and proper trailer operation. It ensures your tail lights, brake lights, and turn signals function correctly every time. Different trailer types, from small utility trailers to large RVs, require specific wiring configurations to handle electrical demands. Following color codes prevents mistakes, short circuits, and wiring damage, making maintenance much easier. YOUYE Electronics offers a complete range of high-quality trailer wiring harnesses that follow these standards, featuring durability, waterproofing, and long-term reliability to keep your trailer safe and fully operational.
The 4-pin wiring system is commonly used on light-duty trailers and boat trailers. It handles the essential trailer functions: tail lights, brake lights, and turn signals. Each wire color is dedicated to a specific function, which simplifies installation and reduces errors.
| Wire Color | Function |
|---|---|
| Brown | Tail lights / running lights |
| Yellow | Left turn / brake light |
| Green | Right turn / brake light |
| White | Ground connection |
Using a 4-pin system ensures basic trailer lighting works consistently. YOUYE harnesses are pre-tested, robust, and easy to install, preventing mistakes and improving overall trailer safety.
For trailers with integrated electric brakes, the 5-pin system adds a blue wire for brake controller output. The other wires follow the 4-pin standard, maintaining simplicity while adding functionality.
| Wire Color | Function |
|---|---|
| Brown | Tail lights / running lights |
| Yellow | Left turn / brake light |
| Green | Right turn / brake light |
| White | Ground connection |
| Blue | Brake controller output |
YOUYE 5-pin harnesses use high-quality copper wires that resist corrosion and ensure reliable brake control under heavy use, making them perfect for long-term performance.
The 6-pin system introduces a black wire to provide 12V auxiliary power, supporting interior lights, fans, or small trailer accessories. This makes it ideal for horse trailers, campers, and RVs needing extra functionality.
| Wire Color | Function |
|---|---|
| Brown | Tail lights / running lights |
| Yellow | Left turn / brake light |
| Green | Right turn / brake light |
| White | Ground connection |
| Blue | Brake controller output |
| Black | 12V auxiliary power |
YOUYE 6-pin harnesses are built to withstand harsh outdoor environments. Their durable design resists moisture, dust, and extreme temperatures, ensuring reliable long-term operation.
The 7-pin system is standard for heavy-duty trailers and RVs. It powers tail lights, brake lights, reverse lights, battery supply, and brake controllers. Two main wiring standards exist: SAE (automotive) and RV.
SAE Standard
| Color | Function |
|---|---|
| Green | Right turn / brake light |
| Yellow | Left turn / brake light |
| Brown | Tail lights / running |
| White | Ground |
| Blue | Brake controller |
| Black | Battery positive (+12V) |
| Purple | Reverse lights |
RV Standard
| Color | Function |
|---|---|
| Green | Tail lights / running |
| Yellow | Reverse lights |
| Brown | Right turn / brake light |
| Red | Left turn / brake light |
| White | Ground |
| Blue | Brake controller |
| Black | Battery positive (+12V) |
YOUYE 7-pin harnesses include waterproof connectors and corrosion-resistant materials, ensuring installation is fast, safe, and reliable.
Modern RVs often use a 7-pin blade configuration. This system adds a gray wire for reverse lights and an orange wire for 12V auxiliary power. It supports additional trailer features like interior lighting, battery charging, and other accessories. YOUYE provides fully compatible harnesses for these advanced setups, ensuring safe operation and optimal performance even in challenging conditions.
Trailer wiring plugs come in many shapes and sizes, each designed for specific applications. Choosing the right plug ensures all lights, brakes, and accessories work properly. For small trailers, a simple 4-pin flat or round plug provides basic lighting for tail lights, brake lights, and turn signals. It’s easy to install and cost-effective for light-duty trailers or boat trailers.
| Plug Type | Features | Common Use |
|---|---|---|
| 4-Pin Flat/Round | Basic lighting only | Utility trailers, small boats |
| 5-Pin Flat | Adds electric brake control | Trailers with integrated brakes |
| 6-Pin Round/Square | Adds 12V auxiliary power for accessories | Horse trailers, RVs |
| 7-Pin Round/RV Blade | Full functionality: lights, brakes, battery, reverse | RVs, heavy-duty trailers |
The 5-pin flat plug adds a blue wire for electric brakes, making it ideal for trailers with integrated braking systems. YOUYE Electronics ensures these plugs use high-quality copper wiring, providing corrosion resistance and reliable brake control.
The 6-pin round or square plug adds auxiliary power for interior lights, fans, or small devices. It’s widely used in horse trailers and RVs that require extra electrical functionality. YOUYE 6-pin harnesses are built tough to resist water, dirt, and extreme temperatures, giving long-term performance.

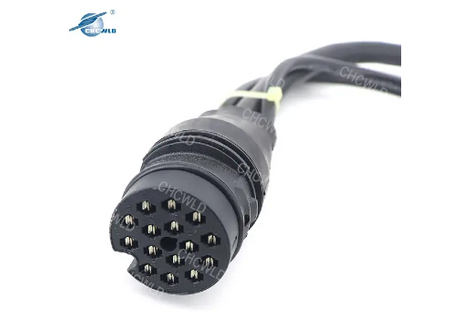

For full trailer functionality, the 7-pin round or RV blade plug is the standard. It handles tail lights, brake lights, reverse lights, battery power, and brake controllers. RV blade connectors often include extra wires for 12V power or reverse lighting. YOUYE offers a wide selection of 7-pin plugs, all durable, waterproof, and compatible with most vehicles and trailers.
Using the correct plug type prevents electrical failures, simplifies maintenance, and guarantees safe operation. YOUYE Electronics provides a comprehensive range of plugs and harnesses, ensuring every trailer hookup is reliable and worry-free.
Identifying and testing trailer wiring is essential for safe operation. Start by inspecting the wiring harness for color codes. Standard wires often follow SAE or RV standards, but DIY or modified setups may differ. A visual inspection helps spot frayed, corroded, or incorrectly connected wires.
Next, use a multimeter to test each wire’s function. Set the meter to voltage mode, turn on the vehicle lights, and check if each wire carries the correct signal. Test tail lights, brake lights, turn signals, and reverse lights individually. This helps confirm which wire does what, especially on older or modified trailers.
| Wire Function | Standard Color (SAE) | Standard Color (RV) |
|---|---|---|
| Tail lights / Running | Brown | Green |
| Left turn / Brake | Yellow | Red |
| Right turn / Brake | Green | Brown |
| Ground | White | White |
| Brake controller | Blue | Blue |
| Battery +12V | Black | Black |
| Reverse lights | Purple | Yellow |
DIY or modified wiring can be tricky. Wires may not match standard colors, so tracing each connection carefully is critical. Label wires after testing to avoid confusion in future maintenance.
YOUYE Electronics provides pre-tested, standardized harnesses compatible with all major trailer types. They simplify installation, reduce errors, and ensure long-term reliability for lights, brakes, and auxiliary power. Using high-quality harnesses eliminates guesswork and keeps trailers operating safely under any conditions.
Trailer wiring often faces issues due to road conditions, weather, and wear. Flickering or non-working lights are common. Loose connections, corrosion, or exposed wires usually cause this. Applying dielectric grease helps prevent corrosion and ensures stable electrical flow. Regularly check connectors and clean any rust or debris for consistent performance.
Blown fuses can stop your lights or brakes from working. Short circuits or overloaded circuits are often the reason. Always redistribute electrical load and replace fuses using the proper ratings. Using incorrect fuses risks repeated failures or damage to wiring.
| Problem | Cause | Solution |
|---|---|---|
| Flickering or failed lights | Loose connections, corrosion | Clean terminals, apply dielectric grease |
| Blown fuses | Short circuit, overload | Redistribute load, replace fuse correctly |
| Undersized wires | Wire gauge too small | Upgrade to 12-16 AWG based on load |
| Environmental damage | Water, salt, dirt, road debris | Use protective tubing, cable sleeves, waterproof harnesses |
Undersized wires reduce efficiency and may overheat. Trailers often need 12-16 AWG wires depending on the load. YOUYE Electronics provides correctly gauged, durable wires for safe operation.
Environmental damage is another major concern. Water, mud, ice, and UV exposure can degrade wiring over time. Use protective tubing, cable sleeves, and waterproof harnesses to prolong wire life. Inspect wiring regularly, especially before long trips, to catch wear or damage early.
Regular maintenance ensures your trailer lights, brakes, and signals stay reliable. YOUYE’s high-quality wiring solutions minimize problems and keep trailers functioning safely, even in harsh conditions.
Proper installation ensures trailer wiring works safely and reliably. Start by planning wire routes to avoid sharp edges, heat sources, or moving parts. Secure wires using clips, ties, or cable holders so they don’t sag or chafe over time. Connect each wire to its corresponding light, brake, or accessory using color codes for accuracy.
Grounding is crucial. Connect the white ground wire to the vehicle chassis at a clean, bare metal spot. A poor ground can cause flickering lights, malfunctioning brakes, or electrical shorts. Always check that the connection is tight and corrosion-free.
Protecting wires increases longevity. Use cable sleeves, conduits, or spiral wrap to shield them from moisture, dust, and road debris. For outdoor or marine trailers, waterproof sleeves are highly recommended.
After installation, always test lights, turn signals, brake lights, and reverse lights using a helper or a circuit tester. Check brake controllers and auxiliary power outputs if applicable. Identify any weak connections or shorts before hitting the road.
| Step | Task | Tip |
|---|---|---|
| 1 | Plan wire route | Avoid sharp edges, heat, moving parts |
| 2 | Secure wiring | Use clips, cable ties, or holders |
| 3 | Connect lights and brakes | Match color-coded wires correctly |
| 4 | Ground wire connection | Connect to clean, bare metal chassis |
| 5 | Protect wiring | Use sleeves, conduits, waterproof wraps |
| 6 | Test all circuits | Use tester or helper to verify operation |
YOUYE Electronics provides easy-to-install kits and durable wiring harnesses. They support both DIY installers and professionals, ensuring long-term reliability and safety on all trailer types.
Rewiring becomes necessary when old wires show wear, corrosion, or frequent failures. Damaged harnesses can cause flickering lights, brake issues, or complete electrical failure. Replacing them early avoids accidents and costly repairs.
Start by planning the wire route. Avoid sharp bends, pinch points, and areas near moving parts or heat. Take note of each wire's function and maintain proper color coding to simplify installation.
Protecting wires is essential. Use cable sleeves, conduits, or spiral wrap to prevent abrasion. Connectors should be corrosion-resistant and easy to attach. Waterproof connectors are ideal for trailers exposed to rain, mud, or marine environments.
After installing the new harness, test every function. Check tail lights, turn signals, brake lights, reverse lights, and auxiliary circuits if available. Use a multimeter or a helper to verify each wire works correctly.
| Step | Task | Tip |
|---|---|---|
| 1 | Inspect old harness | Look for cracks, corrosion, and wear |
| 2 | Plan new wire route | Avoid pinch points, heat, moving parts |
| 3 | Install replacement harness | Follow color codes precisely |
| 4 | Protect wires | Use sleeves, conduits, or spiral wrap |
| 5 | Connect all plugs | Ensure secure and corrosion-free contacts |
| 6 | Test all circuits | Verify lights, brakes, and auxiliary power |
YOUYE Electronics offers complete replacement kits for all trailer types. Their kits include durable wires, waterproof connectors, and full support for a smooth, reliable upgrade.

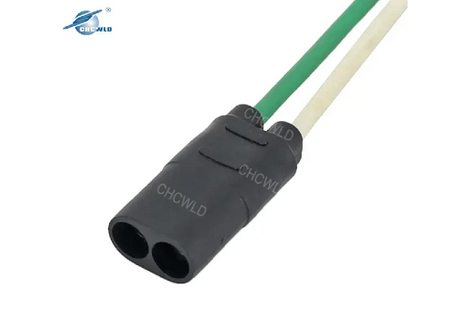

Adapters and converters make different trailer and vehicle wiring systems compatible. They allow a 4-pin trailer to connect to a 7-pin plug or convert 3-wire systems to 2-wire setups. This is useful when towing multiple trailer types or using older vehicles.
| Adapter Type | Function | Tip |
|---|---|---|
| 4-pin to 7-pin | Connects light-duty trailer to 7-pin vehicle | Check each wire function before use |
| 3-to-2 wire | Converts 3-wire trailer system to 2-wire output | Ideal for basic lighting connections |
| Universal converters | Handles various pin differences automatically | Use high-quality adapters to prevent shorts |
Using adapters reduces installation errors and ensures all lights and brakes function properly. YOUYE Electronics provides reliable adapters and converters. They prevent signal loss, corrosion, and failure, making towing safer and simpler. Their products are designed for easy plug-and-play use while maintaining compatibility across different trailer systems.
Understanding trailer wiring color codes is essential for keeping lights, brakes, and signals working safely. Correct wiring prevents short circuits, electrical failures, and reduces accident risks on the road. Regular maintenance and proper installation improve reliability and make troubleshooting easier. YOUYE Electronics offers high-quality, durable, and waterproof trailer wire harnesses for all trailer types. Their products simplify installation, protect wires from environmental damage, and ensure consistent performance. Using a reliable trailer wire harness from YOUYE Electronics provides safe towing, lowers repair costs, and gives peace of mind during every trip.
A: Trailer wiring connects the tow vehicle to the trailer, powering lights, brakes, and accessories to ensure safety on the road.
A: Color codes prevent wiring mistakes, ensure correct light and brake operation, and make installation and maintenance easier.
A: Flickering lights, blown fuses, undersized wires, corrosion, and environmental damage are frequent issues.
A: YOUYE provides durable, waterproof harnesses, adapters, and complete wiring kits compatible with all trailer types.
A: 4-pin, 5-pin, 6-pin, 7-pin, and 7-pin RV blade harnesses, each supporting specific functions like brakes, lights, and auxiliary power.
