Connecting a trailer wire harness is an essential skill for anyone who uses trailers for towing. Whether you're dealing with a simple utility trailer or a heavy-duty equipment hauler, the trailer wire harness ensures that the electrical systems between the towing vehicle and the trailer function properly. These systems control vital components like brake lights, turn signals, reverse lights, and electric brakes.
This guide will walk you through the process of connecting a trailer wire harness, from understanding its components to installation and testing. By the end, you’ll have all the knowledge needed to ensure your trailer’s electrical system is working perfectly.
A trailer wire harness is a set of wires and connectors that link the electrical systems of a tow vehicle to the trailer. It provides power and signals to various electrical components such as the lights, brake lights, turn signals, reverse lights, and electric brakes (if applicable).

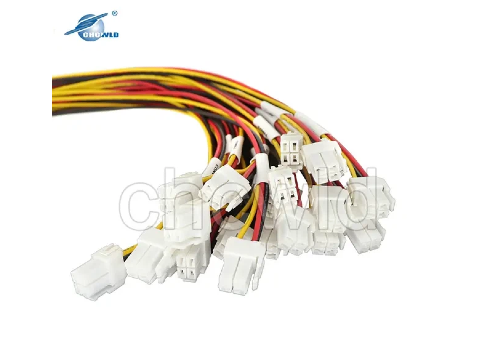

The wire harness includes:
Connector Plugs: These are the connectors that attach to both the tow vehicle and the trailer.
Wires: These carry the electrical signals between the tow vehicle and the trailer.
Fuse Box: Some wire harnesses include a fuse or circuit breaker for protecting the system from electrical overloads.
Before diving into the actual process of connecting your trailer wire harness, it's important to understand the basic wiring system involved. The system typically consists of the following:
This is the most basic type of wiring and includes four connections:
Ground (White wire): Provides a return path for the electrical current.
Left Turn Signal (Yellow wire): Controls the left turn signal and left brake light.
Right Turn Signal (Green wire): Controls the right turn signal and right brake light.
Tail Lights (Brown wire): Powers the tail lights and running lights of the trailer.
This is a more advanced system that provides additional functionality, including support for electric brakes. The 7-way system includes:
Ground (White wire): As described above.
Left Turn Signal (Yellow wire): Controls the left turn signal.
Right Turn Signal (Green wire): Controls the right turn signal.
Tail Lights (Brown wire): Powers the tail lights.
Electric Brakes (Blue wire): Powers the electric brakes on the trailer.
Reverse Lights (Purple wire): Powers the reverse lights on the trailer.
12V Power (Red wire): Provides 12V power for accessories like interior lights or brake controllers.
Before beginning the installation, make sure you have all the necessary tools and materials to complete the job:
Trailer Wire Harness Kit: Choose a harness that is compatible with your trailer's electrical needs. Common options include 4-way and 7-way kits.
Wire Strippers: These are used to strip the insulation off the wires to make a secure connection.
Butt Connectors or Crimp Connectors: These connectors help you secure the wires to their respective terminals.
Electrical Tape: Used to secure and insulate the wiring connections.
Screwdrivers and Wrenches: For removing the old harness or mounting the new one in place.
Multimeter: Used to test electrical connections for continuity and proper function.
Heat Shrink Tubing: Provides a waterproof and secure seal for connections.
Now that you understand the basics of trailer wiring, let's go over the steps to connect your trailer wire harness. This process can vary depending on whether you’re working with a 4-way or 7-way system, but the general principles remain the same.
Make sure you have all the necessary materials within reach. If you’re replacing an old wire harness, remove the damaged harness first. Disconnect the trailer from the tow vehicle to ensure safety.
Start by identifying the current wiring on the trailer, if any. For a 4-way wire harness, you will typically have four wires: white (ground), yellow (left turn), green (right turn), and brown (tail lights). For a 7-way wire harness, there will be more connections, including blue (electric brakes), purple (reverse lights), and red (12V power).
Note the Wire Colors: Ensure that the wire color codes match the new harness you’re installing. If they don’t, you’ll need to verify which wire corresponds to each function.
Check for Existing Connections: If your trailer already has a harness installed, you’ll want to remove or disconnect the old one before proceeding.
Ground the System: Start by connecting the ground wire (typically white) to a metal part of the trailer’s frame to ensure a solid ground connection.
Connect the Wires: One by one, connect the appropriate wires from the trailer wire harness to the trailer. Secure each connection with a crimp connector or butt connector, ensuring they are tight and stable. If you’re using heat shrink tubing, apply it over the connections and heat it with a heat gun to create a waterproof seal.
Secure the Wire Harness: Use electrical tape or cable ties to keep the wire harness neatly organized along the trailer’s frame. Ensure there are no exposed wires or areas where the wires may rub against metal, as this could lead to wear and short circuits.
Locate the Tow Vehicle’s Connector: Identify the wiring connector on the tow vehicle where the trailer wire harness will plug into. This is often located near the vehicle’s bumper.
Plug in the New Harness: Connect the new trailer harness to the tow vehicle’s electrical connector. Make sure that the connection is tight and secure.
Before finishing the installation, you need to test the trailer’s lights and electrical components:
Turn on the Vehicle’s Lights: Check the trailer’s tail lights, brake lights, and turn signals.
Test Electric Brakes: If the trailer has electric brakes, ensure that they are working when the tow vehicle’s brake pedal is pressed.
Check the Reverse Lights: If your trailer has reverse lights, make sure they light up when the tow vehicle is in reverse.
Use a multimeter to test for continuity and ensure that all connections are functioning correctly.
Once you’ve confirmed that everything works properly, secure the wire harness along the trailer’s frame. Clean up any excess wire, tape, or debris from the installation area.
Make sure that the harness is firmly mounted and protected from potential damage caused by road conditions.
Connecting a trailer wire harness may seem like a complex task, but with the right tools and a clear understanding of the process, it’s a straightforward job. Whether you’re replacing an old harness or installing a new one, ensuring that all electrical connections are secure is crucial for the proper functioning of the trailer’s lights, brakes, and other electrical components.
