While connectors often seem like minor components in a massive system, they represent critical single points of failure. A single poor termination in a female connector can trigger intermittent signal loss, dangerous power arcing, or expensive equipment downtime. This reality makes proper selection and installation vital for operational reliability. This guide focuses specifically on field-installable female connectors, covering heavy-duty power interfaces (IEC), data modules (RJ45 Keystone), and RF receptacles (Coaxial). We do not cover pre-molded factory cables here.

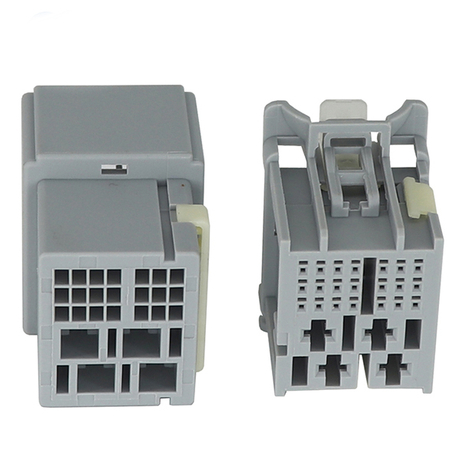

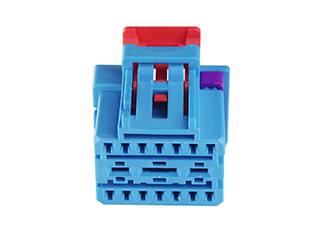

It is important to understand the mechanical distinction of the female interface. Unlike male plugs with solid pins, a female receptacle relies on internal spring tension and precise contact geometry. This design makes them more susceptible to debris accumulation and mechanical fatigue over time. You must treat them as precision instruments rather than simple sockets. By mastering installation techniques and maintenance protocols, you safeguard your infrastructure against preventable failures.
Termination Dictates Lifespan: The method of installation (Crimp vs. Solder vs. Screw) matters more than the brand; 80% of failures are due to poor stripping or torque application.
The Receptacle Risk: Female connectors naturally trap dust and moisture; maintenance must focus on contact cleaning and cycle management.
Verification is Mandatory: A connection is not complete until it passes the Pull-Back Test and electrical continuity checks.
Standards Compliance: Adhering to stripping gauges and torque specs (e.g., IEC 60320, TIA-568) is a safety requirement, not a suggestion.
Choosing the right technology requires matching the connector to your specific operational environment. You must consider the skill level of the installer and the tools available on-site. The termination method often dictates the reliability of the final connection.
Screw and Clamp Terminals (IEC/Power)
These are best suited for field repairs where power is the priority. They allow you to re-terminate wires if necessary. However, they demand torque precision. If you under-tighten, the wire creates heat; if you over-tighten, you sever the copper strands. This method is standard for heavy-duty plugs like C13 or C19 rewirable sockets.
IDC and Punch Down (RJ45/Data)
Insulation Displacement Contact (IDC) is the standard for wall jacks and patch panels. It relies on preserving the wire structure. You must maintain twist rates right up to the jack to ensure data integrity. This method creates a gas-tight seal by slicing through the insulation as you punch the wire down.
Crimp and Solder (RF/Coax/Industrial)
This category offers the highest reliability but requires specialized tooling. Once crimped, the action is non-reversible. It is common in RF applications where impedance stability is critical. Soldering provides a strong bond but is difficult to perform correctly in field conditions without damaging the plastic housing.
When purchasing a connector, look beyond the basic price tag. Consider the lifecycle costs associated with failure.
Mating Cycles: Check how many times the port can be plugged and unplugged before spring tension fails. Industrial-grade units often support thousands of cycles, while consumer grades may fail after a few hundred.
Retention Force: Does your application need a locking mechanism? A standard IEC C13 might vibrate loose in a rack, whereas a locking version secures the power source during movement.
Environmental Sealing: Assess IP ratings carefully. An IP67 rating ensures the socket resists dust and water ingress, which is vital for outdoor female sockets that face exposure when unmated.
We often see a debate between tool-less designs and traditional crimp styles. Tool-less designs speed up labor and require fewer tools. However, they may offer lower long-term vibration resistance. Crimp-style connectors have a higher initial tooling cost but deliver maximum reliability for critical systems.
Following a universal framework for installation ensures consistency. Precision here reduces Total Cost of Ownership (TCO) by preventing early failures.
The Reference Gauge
Use the strip gauge often molded into the connector housing. Alternatively, use a dedicated tool to measure jacket removal. Do not rely on visual estimation. Guessing leads to exposed copper (shiners) or insulation getting caught in the terminal.
Integrity Check
Inspect the conductor immediately after stripping. Look for nicks in the copper, which increase resistance and create hot spots. For RF applications, ensure the braid and shielding provide full coverage. Gaps here allow signal interference.
Managing Twist (Data)
For RJ45 keystones, keep the pairs twisted as close to the termination point as possible. Untwisting them too far back destroys the noise cancellation properties, leading to Near-End Crosstalk (NEXT) and data errors.
| Connector Type | Critical Action | Common Mistake |
|---|---|---|
| Power (Screw Type) | Apply specific torque (e.g., 7 N·m). | Under-tightening causes thermal cycling looseness. |
| Coax (Crimp) | Seat the pin until you hear/feel a Click. | Crimping the ferrule before the pin is fully seated. |
| Data (Punch Down) | Use an impact tool to seat and trim in one motion. | Double punching widens the gap, ruining the gas-tight seal. |
Strain Relief
Tighten the cable gland or strain relief boot before you perform final testing. A female connector lacking strain relief transfers every cable movement directly to the delicate internal contact points. This causes fatigue and eventual disconnection.
Housing Assembly
Verify proper orientation or keying before snapping the shell together. Forcing the housing when it is misaligned damages internal guides and compromises the connector's structural integrity.
You cannot consider an installation complete until you validate it. Risk mitigation prevents you from walking away from a faulty job.
The Pull-Back Test
Apply moderate tension to the cable itself, not the housing. This ensures the terminals are locked securely inside the housing. If a wire pulls out now, it saves a costly repair later.
Visual Inspection
Check for shiners—exposed copper visible outside the housing. Also, look for stray shield strands in coaxial or shielded data cables. A single stray strand can bridge contacts and cause a short circuit.
Continuity & Polarity
Use a multimeter to verify that Pin 1 connects to Pin 1. This prevents Reverse Polarity damage, which can destroy sensitive electronics instantly.
Load Testing
Where applicable, test the connection under load. A poor connection might show proper voltage on an open circuit but will experience significant voltage drop once current flows.
Label the female jack immediately. Label both ends of the cable if possible. Clear labeling aids future troubleshooting and eliminates guesswork during emergency repairs.
Proactive maintenance extends the life of your installed base. It prevents premature replacement and ensures consistent performance.
Female connectors naturally act as cups that collect airborne particulates. Dust accumulation insulates contacts and increases resistance.
Action: Implement dummy plugs or dust caps for any unused ports. This is essential for fiber optics and high-frequency coax, where even microscopic dust ruins the signal.
Do's: Use compressed air to blow out loose debris. For stubborn grime, use specialized non-conductive contact cleaner designed for electronics.
Don'ts: Never insert metal objects like paperclips or tweezers to clean the contacts. This permanently deforms the contact springs (Hertzian stress), ruining the connector's ability to grip the plug.
Recognize loose fits as a definitive end-of-life indicator. If a plug wiggles excessively inside the receptacle, the spring tension is gone.
TCO Impact: Replacing a worn female receptacle is significantly cheaper than repairing a power supply fried by arcing from a loose connection.
For heavy-duty industrial connectors, use dielectric grease sparingly. It reduces insertion force and prevents oxidation. However, be careful not to over-apply, as excess grease attracts dirt and grit.
Diagnosing issues in existing infrastructure requires understanding the root causes of failure.
Cause: This usually points to spring fatigue in the female contact or oxidation on the mating surface.
Fix: Inspect for corrosion. If the contacts are clean but loose, replace the receptacle. Attempting to re-tension springs manually is rarely successful in the long term.
Cause: High resistance often results from loose screw termination or under-crimping during installation.
Fix: Check for thermal discoloration or melting on the housing. If heat damage exists, you must cut back the wire and re-terminate with a fresh section of conductor.
Cause: Misaligned internal pins or damaged keyways often block entry.
Fix: Before blaming the female connector, check the male counterpart for bent pins. A damaged plug can ruin a good receptacle.
Cause: Impedance mismatch is likely. This happens when the shield is terminated improperly or too much jacket was stripped away.
Fix: Re-terminate the connection, ensuring the twist (for data) or shield (for RF) remains intact as close to the contact point as possible.
Correct installation of a female connector is a precision task. It requires specific tools—strippers, torque drivers, and crimpers—and strict adherence to physical principles like strain relief and contact tension. The cost of purchasing a high-quality connector and taking the time to install it correctly is negligible compared to the cost of system downtime. We recommend you audit your current toolset and stock spare receptacles for your most critical equipment. Precision today prevents panic tomorrow.
A: The female connector acts as the receptacle or socket containing internal contacts. The male connector is the plug with protruding pins that fit into the female housing. As a general safety rule, live power sources typically use the female side. This design prevents accidental shock, as the conductive contacts are recessed and harder to touch.
A: Generally, no. Crimping permanently deforms the metal to create a cold weld. You cannot undo this without destroying the contact. Screw-terminal types are reusable, but you should always cut and re-strip the wire ends to ensure a fresh, clean connection surface.
A: You must match the Voltage, Amperage, Form Factor (e.g., C13 vs. C15), and IP Rating. Physical fit does not guarantee electrical compatibility. For example, a high-temperature environment requires a C15 connector, even though a C13 might look similar. Always verify the manufacturer's specifications.
A: This phenomenon, known as arcing, often occurs when connecting under load or due to loose internal contacts. If the connection sparks, it indicates a poor electrical interface. Immediate replacement is recommended to prevent fire hazards or damage to the connected device.
