Automotive wiring harnesses are critical components in the functioning of modern vehicles. These harnesses are intricate networks of wires, connectors, and terminals that carry electrical signals and power throughout a vehicle. From powering the engine to enabling advanced safety features like airbags and anti-lock braking systems (ABS), automotive wiring harnesses ensure that all electrical systems operate efficiently and reliably. But how are these complex systems made? In this article, we will walk you through the step-by-step process of how automotive wiring harnesses are made, from the materials used to the assembly techniques that ensure their safety, longevity, and performance.
The first stage in the manufacturing of an automotive wiring harness is the design phase. The wiring harness must be tailored to meet the specific requirements of the vehicle it will be used in, which means that each vehicle type may have a different wiring harness configuration. The design engineers map out the entire electrical system, identifying the wiring paths and components that will require connections.
During the design process, engineers must consider a variety of factors, such as:
Vehicle Type and Function: The complexity of the vehicle’s systems will influence the design. A basic passenger vehicle might have a simpler harness compared to an electric or hybrid vehicle that requires more complex connections.
Space Constraints: Automotive wiring harnesses must be designed to fit within the tight confines of a vehicle’s chassis, engine compartment, and interior. The layout is carefully planned to avoid interference with other components.
Temperature and Environmental Conditions: Harnesses must be built to withstand varying temperatures, vibrations, and exposure to chemicals, moisture, and UV light.
Safety and Standards Compliance: Wiring harnesses must adhere to stringent safety and quality standards, such as ISO, SAE, and UL certifications, ensuring their longevity and reliability.
Once the design is complete, the specifications are handed over to the manufacturing team.
Materials are a crucial aspect of the wiring harness production process. The selection of the right materials ensures that the harness performs efficiently and withstands the rigors of the vehicle’s environment. The primary materials used in the manufacturing of automotive wiring harnesses include:
Wires
The heart of the wiring harness is the wires themselves. These wires are typically made from copper due to its excellent electrical conductivity. Copper can be used in both solid and stranded wire forms. Stranded wires, made of many thin copper strands twisted together, are more flexible and resistant to fatigue and breakage, which is particularly important in automotive applications where vibrations and movement are common.
Insulation Materials
To ensure that wires are protected from damage and electrical short circuits, they are coated with an insulating layer. The most common insulation materials used in automotive wiring are:
PVC (Polyvinyl Chloride): PVC is a cost-effective, durable insulation material that is commonly used in automotive wiring harnesses. It is resistant to chemicals, oils, and abrasion.
TPE (Thermoplastic Elastomers): TPE is used for more flexible applications and provides better resistance to extreme temperatures compared to PVC.
XLPE (Cross-linked Polyethylene): XLPE is known for its high-temperature resistance, and it is used for high-power applications like in hybrid and electric vehicles.
Silicone Rubber: Silicone is often used in high-temperature or high-performance applications, such as under-the-hood wiring, where temperatures can exceed typical limits.
Connectors and Terminals
The connectors are the components that enable different parts of the vehicle’s electrical system to be joined together. These connectors come in various shapes and sizes and are typically made of metal (usually copper or brass) and plastic. The connectors must be designed for secure, durable connections to prevent electrical failures and maintain a solid signal flow.
Shielding
Shielding is essential to protect the wiring from electromagnetic interference (EMI), especially in modern vehicles that use complex electronic systems. Aluminum foil, braided copper, or other conductive materials are often used to shield wires from external interference, which ensures that sensitive data signals are not disrupted.

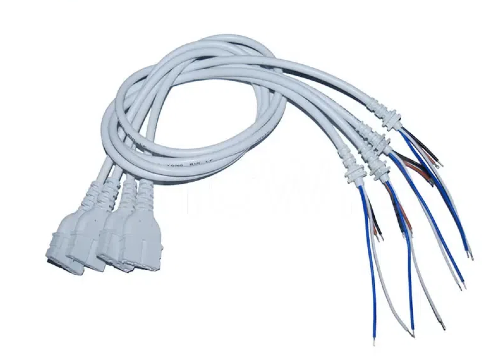

Once the materials are selected, the next step is the cutting and stripping of the wires to the necessary lengths. The wires are precisely cut to fit the harness layout, and the insulation is stripped from the ends to expose the metal conductor. Automated machines are typically used for this task, ensuring consistent and accurate results.
The stripping process requires precision because any damage to the wire can affect the performance of the entire harness. The wires are carefully stripped to avoid nicking the copper, which could lead to weak points or potential failures in the system.
After the wires are cut, stripped, and prepared, the assembly process begins. The wires are arranged according to the design specifications, and connectors and terminals are added. The assembly process involves several steps:
Bundling and Organizing
The wires are grouped together in a bundle, often following a predetermined path to ensure that they are organized according to the electrical layout of the vehicle. This step is critical for keeping the harness neat, preventing tangling, and ensuring the correct routing of wires.
Crimping and Soldering
Crimping is the process of securing connectors to the stripped ends of the wires. A crimping tool is used to attach a metal connector to the wire’s exposed end. In some cases, soldering is also used to ensure a strong, conductive connection. The crimped or soldered connectors are then inserted into the appropriate connector housings.
Testing and Quality Control
After the wiring harness is assembled, it undergoes rigorous testing to ensure that all electrical connections are solid and functional. Testing may include checking for continuity, verifying insulation resistance, and ensuring that the connectors are correctly fitted. The harness must be free from any manufacturing defects that could cause system failures in the vehicle.
Insulating and Protecting
Once the wiring harness is assembled and tested, it is often wrapped with additional protective layers. These protective coatings can include plastic tapes, braids, or convoluted tubing to protect the wires from abrasion, moisture, and chemical exposure. This step ensures the harness's longevity, particularly in harsh automotive environments.
The final step in the production of automotive wiring harnesses is a comprehensive inspection. Quality assurance teams check the harnesses for any defects, ensuring that they conform to design specifications. This includes checking for correct wire routing, proper connector assembly, and proper insulation of all components.
Once approved, the wiring harness is packaged and prepared for shipment. Depending on the manufacturer’s requirements, it may be shipped to the vehicle assembly plant for installation into the vehicle.
Precision in the assembly process is crucial for ensuring the reliability and longevity of the wiring harness. Any slight misstep—such as incorrect crimping, faulty insulation, or poor connection—can lead to a malfunction in the vehicle’s electrical system. This is why high-quality manufacturing practices and attention to detail are imperative in the production of automotive wiring harnesses.
For instance, in high-performance and safety-critical applications like airbags or ABS systems, the wiring harness must be meticulously assembled to ensure that it can handle the required load and provide reliable operation under varying conditions. Faulty wiring harnesses can lead to safety failures, potentially putting passengers at risk.
